PERALATAN MEKANIKA TEKNIK

The porpose of this apparatus is to demonstrate those circumatance to which bernoullis theorem may be applied and also, separately, why in other circumatances the theorem given an inadequatic description of the fluid behaviour. The clear acrylic test section consist of an accurately machined asymmetrical circular duct of varying eross-sectional area.

Specification :

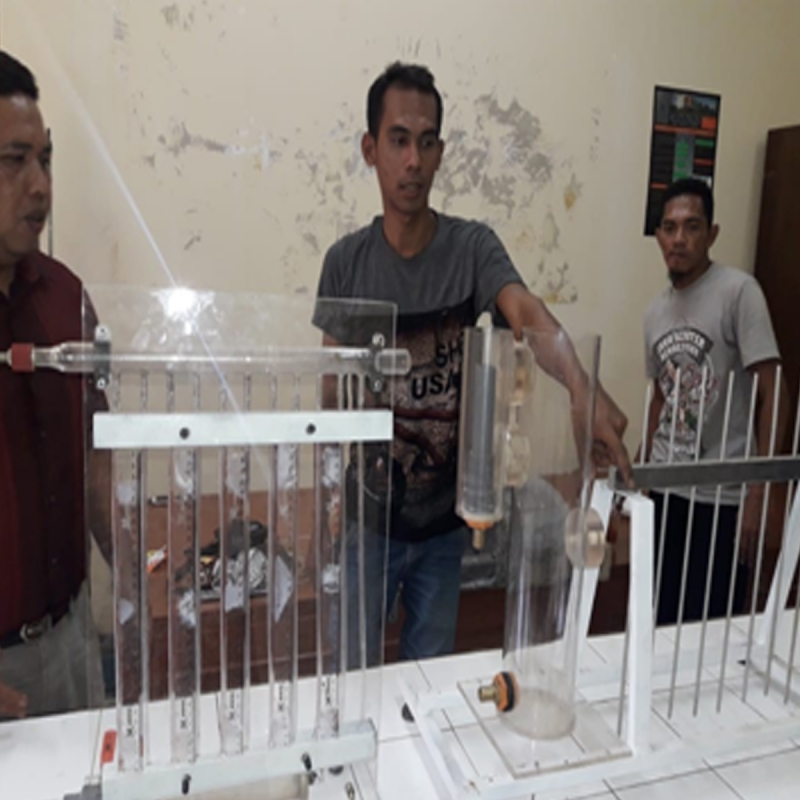

The test section consist of classical ventury machined in clear aclyric. A series of wall tapping enable measurement of the statistic pressure distribution along the conveging and diverging duct. A Total head tube is provided to traverse along the centre.

Technical Detail :

Manometer Range : 0 to 300 mm Number of manometer Tubes : 8
Upstream diameter : 25 mm
Upstream Taper : 14”
Upstream Taper : 21”
