Compression Machine ASTM C-39

Name: Compression Machine ASTM C-39
Brand: Compression Machine ASTM C-39
SKU: 71
Price: 38000000 IDR
Availability: InStock
Rating: 4.4 (89 reviews)

Equipment Category : Concrete atau Beton

Kami perusahaan pengadaan alat laboratorium teknik sipil. Produk kami khusus di rancang untuk pengujian :
Alat Uji Tanah
Alat Uji Batuan
Alat Uji Beton
Alat Uji Semen
Alat Uji Aspal
General Mesin
Mining atau Pertambangan
Dalam pengadaan alat laboratorium teknik sipil. kami sudah berpengalaman dan telah banyak bekerja sama dengan kontraktor konstruksi, lab swasta, perguruan tinggi BUMN kementrian pupr dan inspektorat.

Description

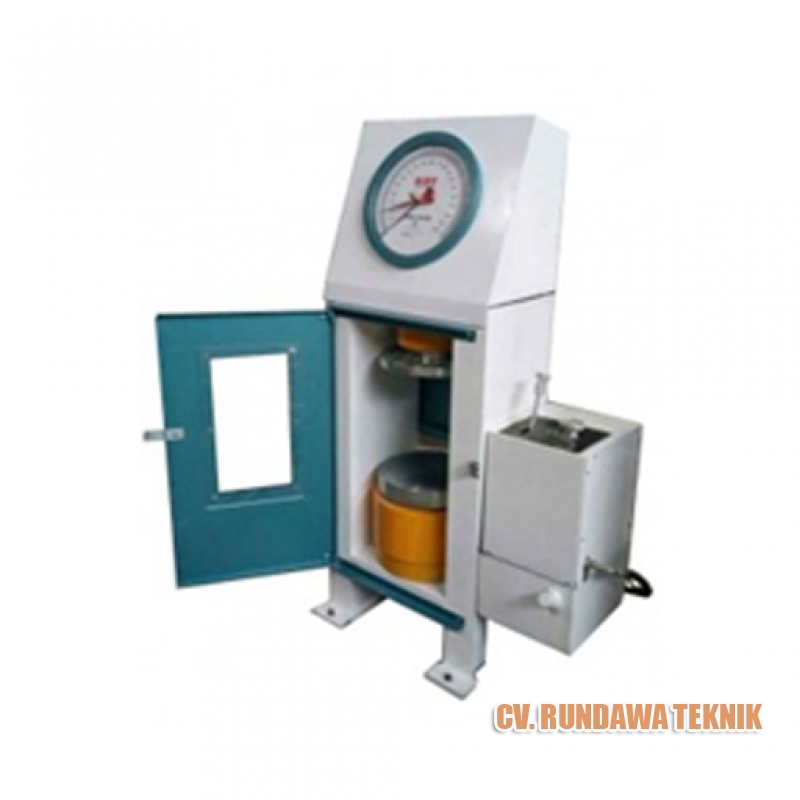

RC-321.3	COMPRESSION MACHINE	1	set
	ASTM C-39
	Frame : Heavy-duty welded steel contruction 30 cm profile steel columns 10 cm thick botom and upper and upper plate
	Hydraulic System : Cast iron cylinder,
	For 1500 kN Cap : Hard-chormed piston, 230 mm dia max working pressure 50.000 kPa Overal dimension 280 mm dia x 320 mm height. Single action, gravity return
	Hydraulic Pump : Hand operated, single action 6.000 ml reservoir cap max working pressure 50.000 kPa. Single action, gravity return.
	Force Gauge : Bourdon tube manometer, 280 mm dial dia with max load pointer. Steel box housing. Calibrated by JNK.
	Compressive : Upper : 180 x 180 mm, ball seating.
	Platen : Lower : 250 mm dia
	Clearance : Horizontal : 290 mm Vertical : 310 mm
	Dimension : 660 x 600 x 1400 mm ( l x w x h ) approx
	Weight : 500 kg

RC-321.4	COMPRESSION MACHINE	1	set
	ASTM C-39
	Frame : Heavy-duty welded steel contruction 30 cm profile steel columns 10 cm thick botom and upper and upper plate
	Hydraulic System : Mild-Steel Cylinder,
	For 2000 kN Cap : Hard-chormed piston, 230 mm dia max working pressure 50.000 kPa Overal dimension 300 mm dia x 320 mm height. Single action, gravity return
	Hydraulic Pump : Hand operated, single action 6.000 ml reservoir cap max working pressure 50.000 kPa. Single action, gravity return.
	Force Gauge : Bourdon tube manometer, 280 mm dial dia with max load pointer. Steel box housing. Calibrated by KAN.
	Compressive : Upper : 180 x 180 mm, ball seating.
	Platen : Lower : 250 mm dia
	Clearance : Horizontal : 290 mm Vertical : 310 mm
	Dimension : 660 x 600 x 1400 mm ( l x w x h ) approx
	Weight : 500 kg

RC-321.5	COMPRESSION MACHINE	1	set
	ASTM C-39
	Frame : Heavy-duty welded steel contruction 30 cm profile steel columns 10 cm thick botom and upper and upper plate
	Hydraulic System : Mild-Steel Cylinder,
	For 3000 kN Cap : Hard-chormed piston, 250 mm dia max working pressure 50.000 kPa Overal dimension 330 mm dia x 320 mm height. Single action, gravity return.
	Hydraulic Pump : Hand operated, single action 6.000 ml reservoir cap max working pressure 50.000 kPa. Single action, gravity return.
	Force Gauge : Bourdon tube manometer, 280 mm dial dia with max load pointer. Steel box housing. Calibrated by JNK.
	Compressive : Upper : 180 x 180 mm, ball seating.
	Platen : Lower : 250 mm dia
	Clearance : Horizontal : 290 mm Vertical : 310 mm
	Dimension : 660 x 600 x 1400 mm ( l x w x h ) approx
	Weight : 500 kg

RC-325.3	COMPRESSION MACHINE	1	set
	ASTM C-39
	Frame : Heavy-duty welded steel contruction 30 cm profile steel columns 10 cm thick botom and upper and upper plate
	Hydraulic System : Cast iron cylinder,
	For 1500 kN Cap : Hard-chormed piston, 230 mm dia max working pressure 50.000 kPa Overal dimension 280 mm dia x 320 mm height. Single action, gravity return
	Hydraulic Pump : Electric, 220 V AC, 50-60 Hz, 1000 Watt,1 Phase single action, variable speed 6.000 ml reservoir cap max working pressure 50.000 kPa. Single action, gravity return.
	Force Gauge : Bourdon tube manometer, 280 mm dial dia with max load pointer. Steel box housing. Calibrated by KAN.
	Compressive : Upper : 180 x 180 mm, ball seating.
	Platen : Lower : 250 mm dia
	Clearance : Horizontal : 290 mm Vertical : 310 mm
	Dimension : 760 x 320 x 1400 mm
	Weight : ( l x w x h ) approx. 500 kg

RC-325.4	COMPRESSION MACHINE	1	set
	ASTM C-39
	Frame : Heavy-duty welded steel contruction 30 cm profile steel columns 10 cm thick botom and upper and upper plate
	Hydraulic System : Mild-Steel cylinder,
	For 2000 kN Cap : Hard-chormed piston, 230 mm dia max working pressure 50.000 kPa Overal dimension 300 mm dia x 320 mm height. Single action, gravity return
	Hydraulic Pump : Electric, 220 V AC, 50-60 Hz, 1000 Watt,1 Phase single action, variable speed 6.000 ml reservoir cap max working pressure 50.000 kPa. Single action, gravity return.
	Force Gauge : Bourdon tube manometer, 280 mm dial dia with max load pointer. Steel box housing. Calibrated by KAN.
	Compressive : Upper : 180 x 180 mm, ball seating.
	Platen : Lower : 250 mm dia
	Clearance : Horizontal : 290 mm Vertical : 310 mm
	Dimension : 760 x 320 x 1400 mm
	Weight : ( l x w x h ) approx. 500 kg

RC-325.5	COMPRESSION MACHINE	1	set
	ASTM C-39
	Frame : Heavy-duty welded steel contruction 30 cm profile steel columns 10 cm thick botom and upper and upper plate
	Hydraulic System : Mild-Steel cylinder,
	For 3000 kN Cap : Hard-chormed piston, 250 mm dia max working pressure 50.000 kPa Overal dimension 330 mm dia x 320 mm height. Single action, gravity return
	Hydraulic Pump : Electric, 220 V AC, 50-60 Hz, 1000 Watt,1 Phase single action, variable speed 6.000 ml reservoir cap max working pressure 50.000 kPa. Single action, gravity return.
	Force Gauge : Bourdon tube manometer, 280 mm dial dia with max load pointer. Steel box housing. Calibrated by KAN.
	Compressive : Upper : 180 x 180 mm, ball seating.
	Platen : Lower : 250 mm dia
	Clearance : Horizontal : 290 mm Vertical : 310 mm
	Dimension : 760 x 320 x 1400 mm
	Weight : ( l x w x h ) approx. 500 kg
